With the development of switching power supplies, high-power transformers, and new energy on-board chargers (OBCs) in the direction of high frequency and compactness, the traditional "in-in-out" winding structure is facing challenges. How to achieve better electrical performance and easier assembly in a limited space? The Alpha Winding process is becoming a benchmark for high-end applications in the industry thanks to its unique double-ended external lead structure.
1. What is alpha winding? What is its core value?
Alpha winding is named because its winding trajectory resembles the Greek letter "$\alpha$". Its technical characteristics are that the starting end (incoming line) and the end end (outgoing wire) of the winding are located on the outer circumference side of the coil.
This change brings a three-dimensional performance leap compared to traditional winding:
Reduce high-frequency loss: The outlet of the inner layer of traditional winding needs to span the entire winding, which is prone to serious skin effect. Alpha winding eliminates internal cross-wire and effectively reduces AC losses.
Simplified Assembly Process: With both ends on the outside, there is no need to manually remove the coils to find the inner head when soldering and connecting PCB boards, greatly improving productivity and reducing the risk of damage.
Optimized Thermal Management: The flat wire with the alpha winding method allows heat to be more evenly conducted from the inner layer to the outer layer, effectively avoiding local hot spots and extending the life of components.
2. Technical bottlenecks: the leap from theory to mass production
Although the advantages of alpha winding are significant, its winding logic is extremely complex, which puts forward strict requirements for automation equipment:
Bidirectional synchronization accuracy: The winding process requires complex nonlinear linkage between the spindle and multiple sets of wire feeding mechanisms, and any slight desynchronization will cause the coil to loosen.
Constant tension control: The winding trajectory frequently switches between the inner and outer circumferences, and the tension fluctuates greatly. If compensation is not made in real time, enamel damage and wire diameter thinning will lead to reduced yields.
Center positioning problem: The alpha winding method requires precise positioning of the starting point, otherwise it will affect the geometric symmetry of the entire coil and thus the electrical performance.

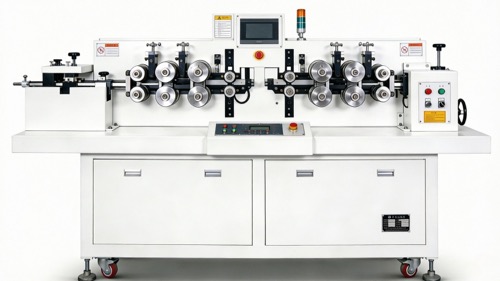

3. Core solution: The technology of high-performance alpha winding machine supports the flat wire alpha winding machine we developed, through a number of core technologies, to transform this complex process into stable mass production capacity:
Synchronization Algorithm: Adopts a high-performance motion control chip that supports multi-axis interpolation synchronous control to ensure accurate winding trajectories and achieve a high degree of consistency in coil shape.
High stability: The clamping mechanism optimized for the flat wire characteristics gives the coil good physical stability, effectively preventing slippage and deformation during the winding process.
Closed-loop tension system: Equipped with an active wire feeding system with extremely fast response, the dynamic tension fluctuation is controlled within a very small range, providing all-round protection for the enameled film.
Intelligent changeover: For flat wires of different specifications, process switching can be completed through parametric settings on the operation interface, greatly shortening the equipment commissioning cycle.
4. Conclusion
In today's pursuit of power density limits, process refinement is the core of competitiveness. The alpha winding process is not only a change in the winding method, but also a reconstruction of the design logic of electronic components. Through high-precision and intelligent alpha winding machines, we help manufacturing enterprises break through existing performance bottlenecks and gain an advantage in the field of high-end precision manufacturing.
